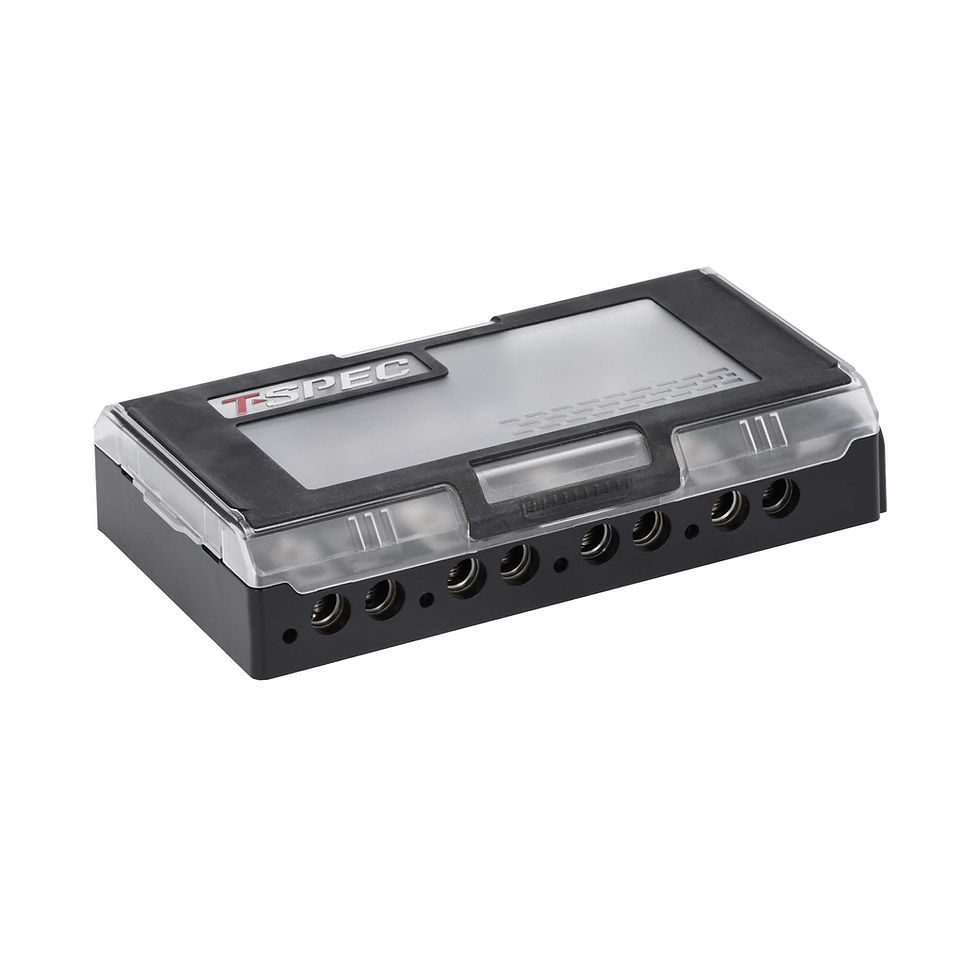

T-SPEC VBDB4 Distribution Block
T-SPEC’s VBDB4 is a unique distribution block that combines the most practical, sophisticated features in its class with the highest performance on the market to unleash the full power of a car audio system. Premium construction and materials allow for a highly conductive block with 5mm thick solid brass bus bars and a satin gunmetal finish, with dual 0/1 ground inputs to match the dual 0/1 positive inputs. This block also has a built-in amplification relay for boosting the current rating of the amplifier turn-on wire, distributing it across all 4 outputs. The 4 mated outputs group remote, 4ga power, and 4ga ground together for quick identification, and an anti-short sub-cover isolates the returning ground bar and terminals. A Blown Fuse Indicator (BFI) LED light for each circuit indicates which fuse to replace and 3 rapid replacement spare MANL fuse locations built into the case make replacement simple and easy. A TPE wrapped soft-touch cover completes the high-end look for this premium performance distribution block.
Features:
Dual 0/1 AWG positive in
Dual 0/1 AWG negative in
(4) Mated 4 AWG output sets with remote distribution
Built-in amplification relay for boosting the current rating of the amplifier turn-on wire, distributing it across all 4 outputs
Anti-short sub-cover to isolate the ground bar and terminals
(4) Independently MANL fused positive circuits
Blown Fuse Indicator (BFI) LED for each circuit
(3) Rapid replacement spare MANL fuse locations built inside the case
One tool for hardware installation using T-SPEC T20 Torx® screws with Gate Lock technology
Satin gunmetal finished 5mm brass bus bars for power and ground distribution
TPE wrapped soft-touch cover with modern aesthetics
